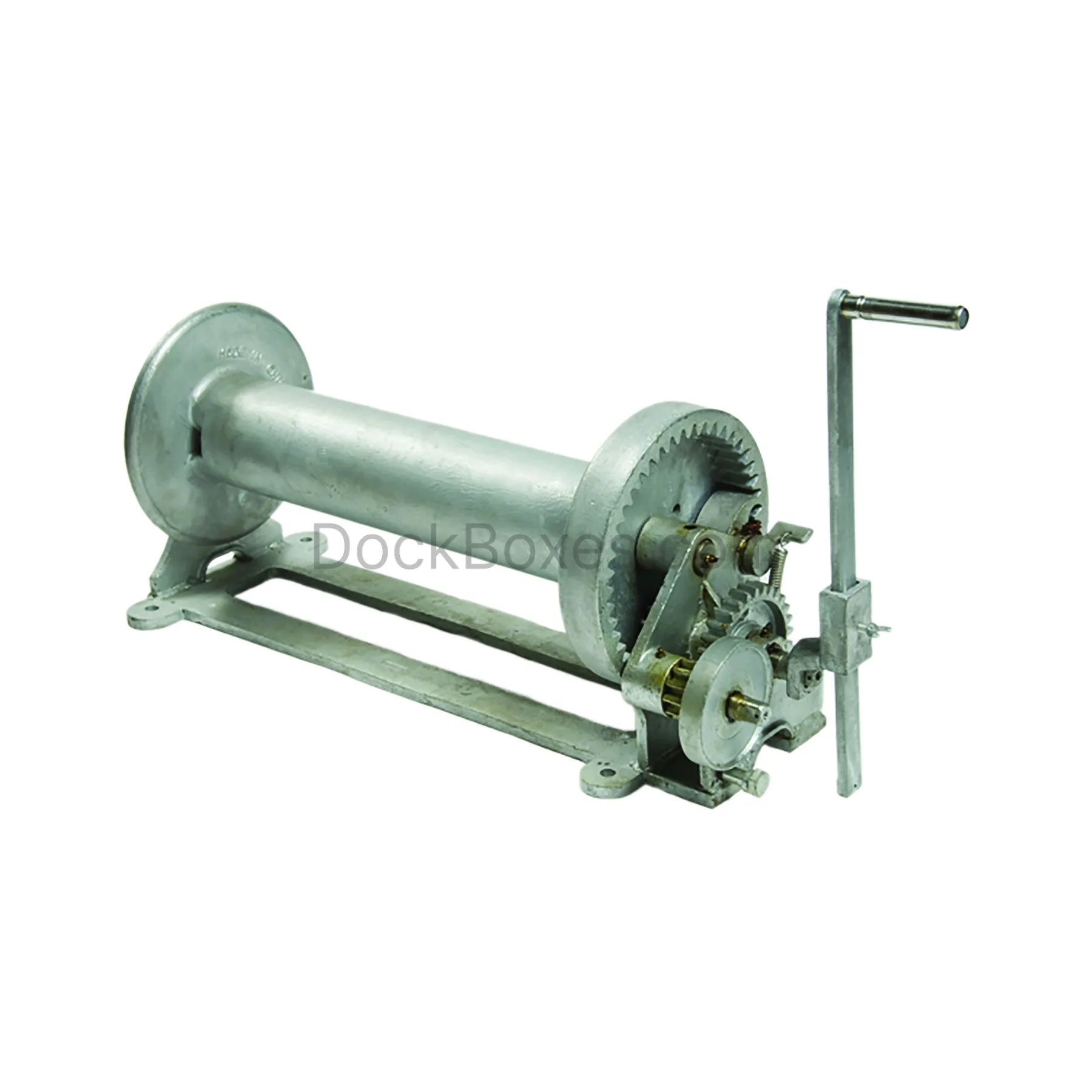

#23 Galvanized Marine Hand Winch
Width: 23.75"
Depth: 8.5"
Weight: 109 lbs
$1,407.14
Volume pricing available for commercial buyers
Deckhand Shore Power includes these standard features:
Placement of 1-inch Hub on Top Metering Device Attachment, (2) Pre-Punched 3/4 inch Conduit Holes, Padlockable Breaker Door, Six-Circuit Copper Eaton BR Interior for Shore Power and Auxiliary Circuit Breakers, Wall Mountable, and UL231-Listed for Safety Power Outlets.
Description
The Marine Winch Model No. 23 is our most rugged and durable model, built to handle the toughest marina conditions. With precision gearing and a reinforced frame, it delivers smooth, dependable operation and long-term reliability you can count on season after season.
SPECIFICATIONS
CABLE SIZE / CABLE CAPACITY
3/8 in /560 ft
1/2 in / 320 ft
5/8 in / 280 ft
3/4 in / 245 ft
Key Features
- "Inside Drum Width: 21 in
- Mounting Holes: 23 3/4 in x 8 1/2 in to Center Holes
- Weight: 114 lbs.
- Holding Capacity: 10,000 lbs.
- Gear Ratio: Large - 4 to 1, Small - 11 to 1"
