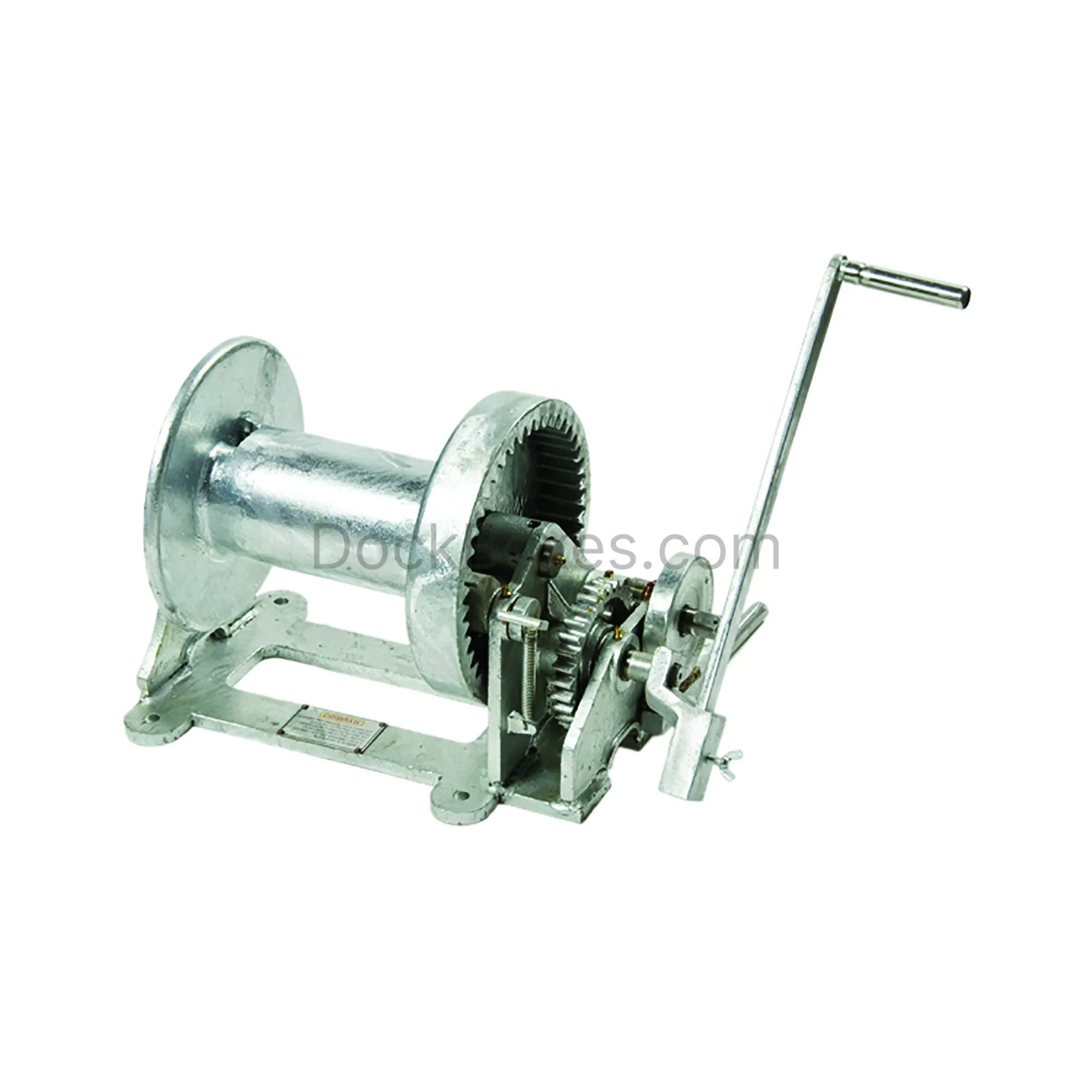

Galvanized Marine Winch #11
Description
With a lifting capacity of 3,000 lbs., the marine winch model no. 11 is the perfect choice for most applications. With the same extra heavy-duty construction as the other models, the no. 11 offers solid strength and dependability at a light 87 lbs.
SPECIFICATIONS
CABLE SIZE / CABLE CAPACITY
3/8 in / 260 ft
1/2 in / 185 ft
t5/8 in / 120f
3/4 in / 75ft
Key Features
- Inside Drum Width: 8 3/4 in
- Mounting Holes:11 1/4 in x 8 1/2 in to Center Holes
- Weight: 90 lbs.
- Holding Capacity: 10,000 lbs.
- Lifting Capacity: 3,000 lbs.
- Gear Ratio: Large - 4 to 1, Small - 11 to 1"
