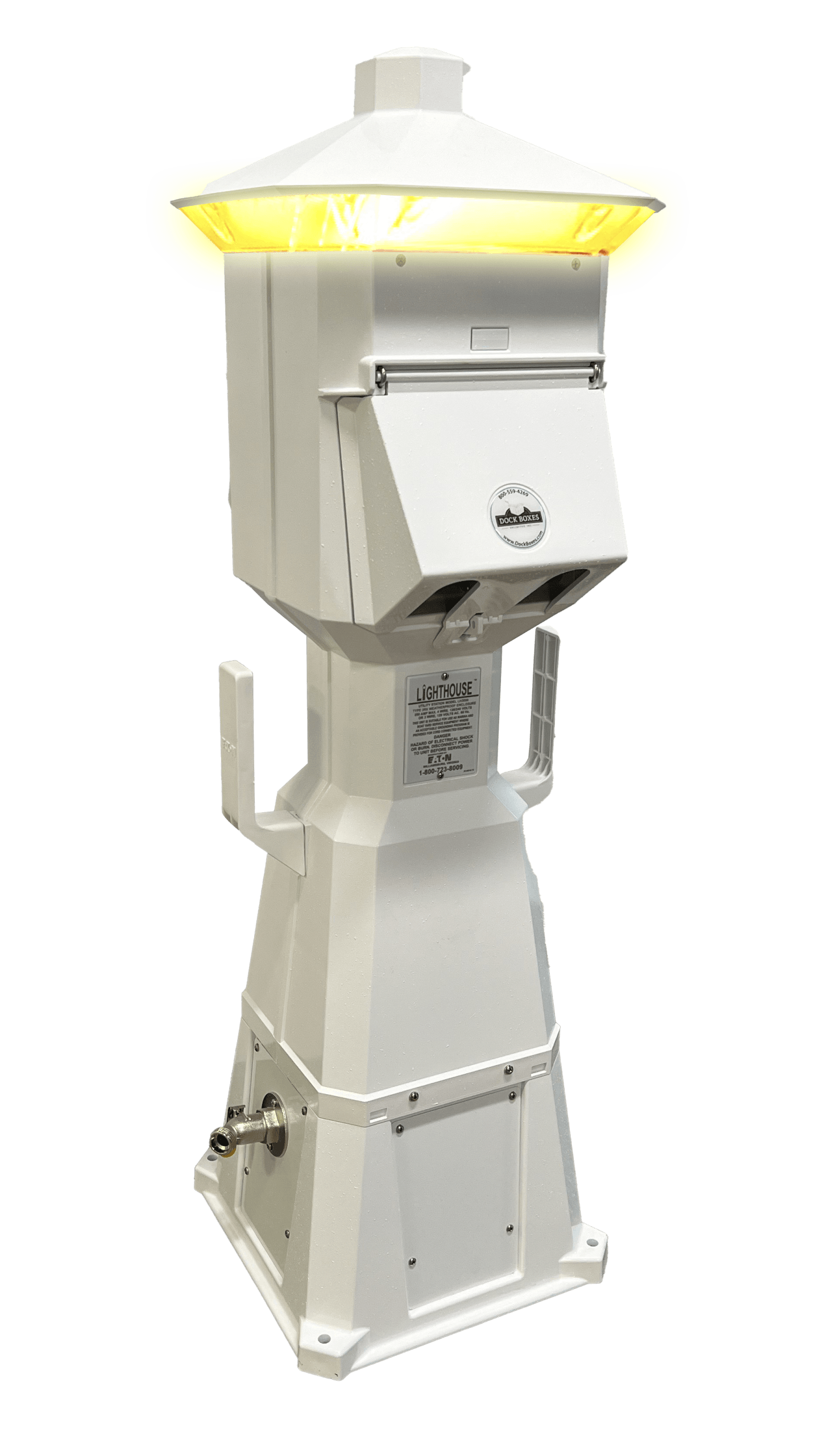

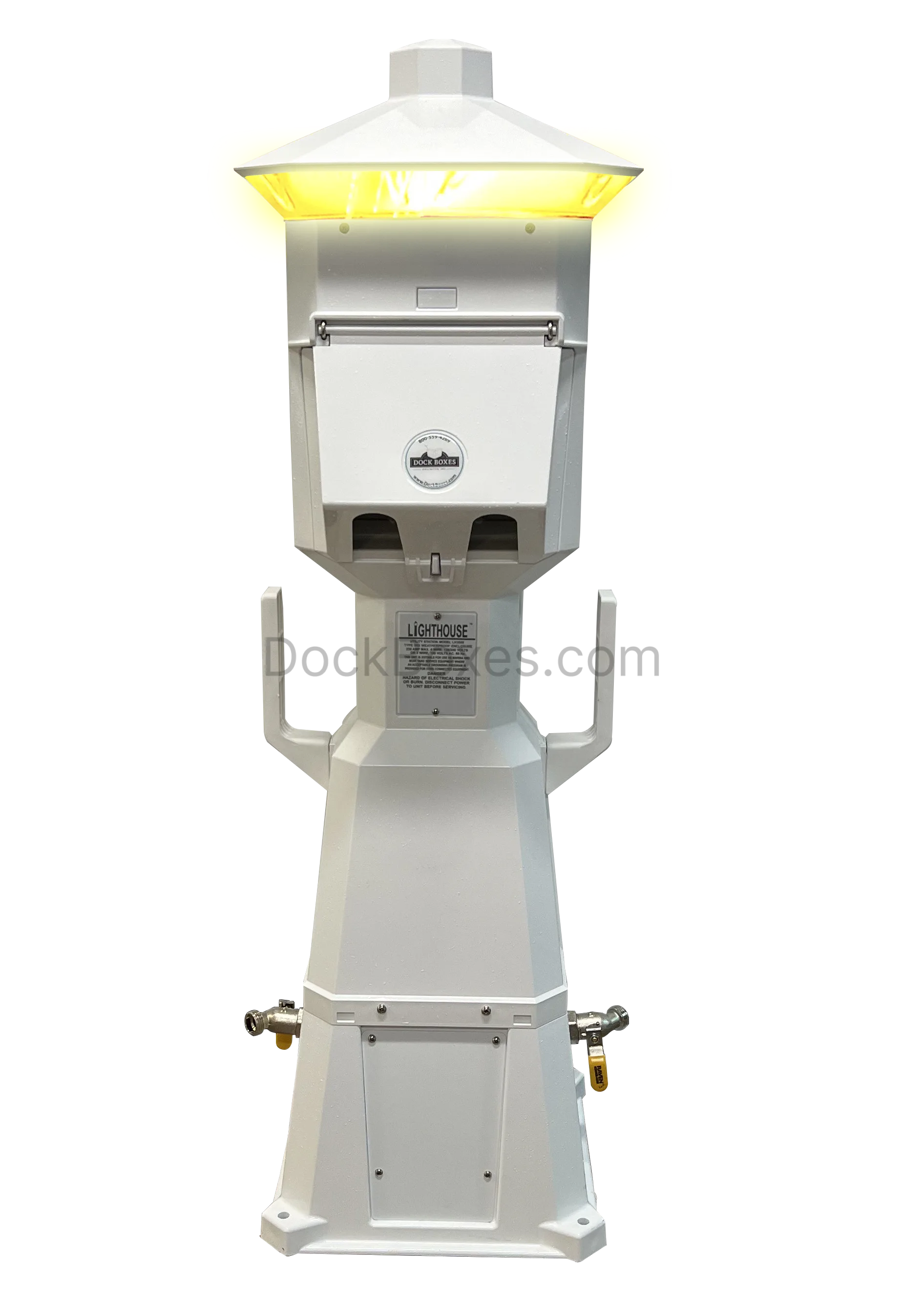

Lighthouse Power Pedestal

BUILD YOUR PEDESTAL

Each power pedestal is assembled and built to your specifications. Choose any combination of receptacles and options up to the maximum amperage indicated for each model. *Maximum amperage is calculated by adding the receptacle’s amperage together. Eg. 50a-30a / 80amps total

Standard features: LED photocell control lighting, 2 hose and cable brackets, amber lens. All Power Pedestals are pre-wired and ready to install when delivered. Breakers are standard with each receptacle.

Electrical Power Pedestal Maximum 120 Amps per side

Lighthouse Power Pedestal

Width: 13.75"
Depth: 13.75"
Height: 44.75"
Weight: 40 lbs
SKU:
Width: 13.75"
Depth: 13.75"
Height: 44.75"
Weight: 40 lbs

  • Description
  • Key Features
  • Technical Drawings
  • FAQ's

  • Power pedestals come pre-wired and ready for installation for your convenience. When choosing the configuration of your power pedestal, the Lighthouse offers many customized options to meet your needs. The Lighthouse is one or two-sided and can provide power for two boats or RVs per pedestal. Simply choose your required power pedestal configuration required with your electrical needs for each side.

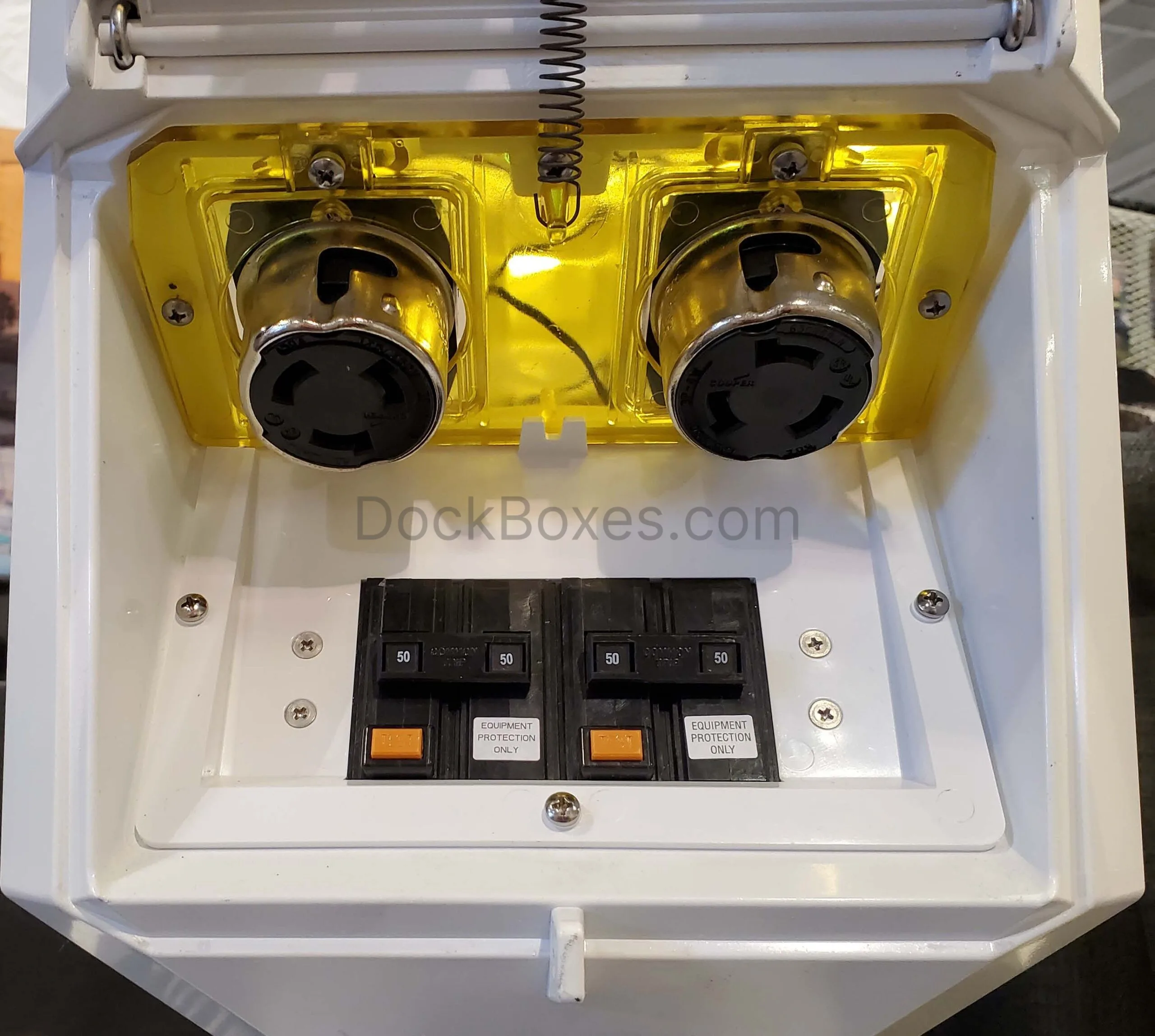

    Power Pedestal Receptacle Configurations: Our Lighthouse power pedestal allows you to customize each side of the power pedestal to have up to 240 total amps per unit. When ordering please specify your choice of combination for each side of the pedestals with any combination of 20amp, 30 amp, 50 amp, or choose 100 amps.

    It is important to note that in this Lighthouse Power Pedestal model, if you ever upgrade your boat or electrical needs, you can also upgrade your power pedestal by simply ordering a wiring kit with the desired receptacles, wiring harness, and breakers needed.

    • 360° photocell controlled LED light
    • Amber lens, clear lens optional
    • White housing, available in heavy resin or powder coated stainless steel

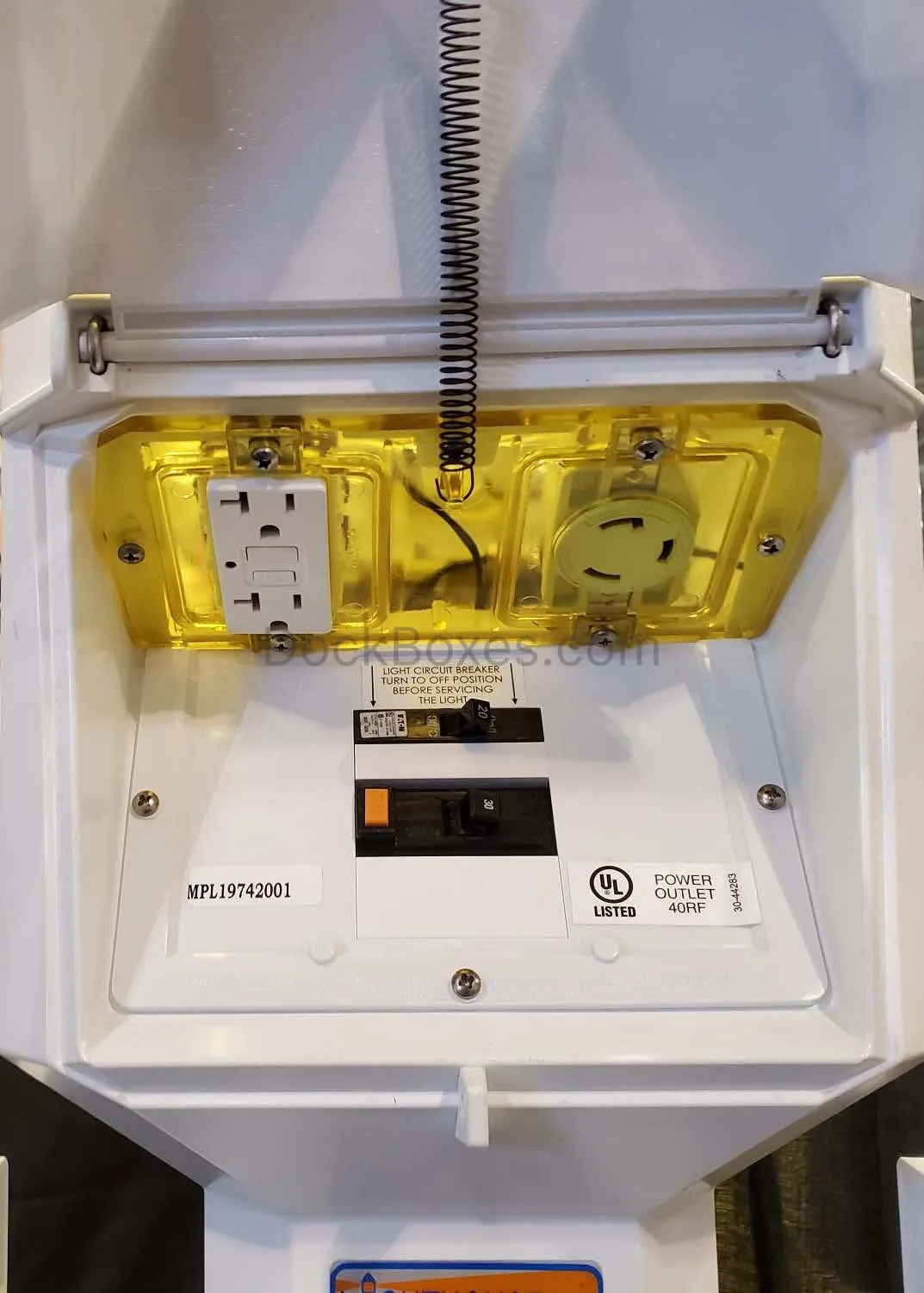

    • Backlit faceplate, easy receptacle plug-in at night
    • Digital electronic meter option
    • Two lockable door covers, waterproof
    • Marine or RV receptacles; single, dual, or combinations available
    • Two shore power cords
    • Copper bus bar, up to 4 AWG wire / 350 MCM bus bar/loop feed capable, with ratings from 250-500 amps
    • Hinged base, easy access for installation and maintenance

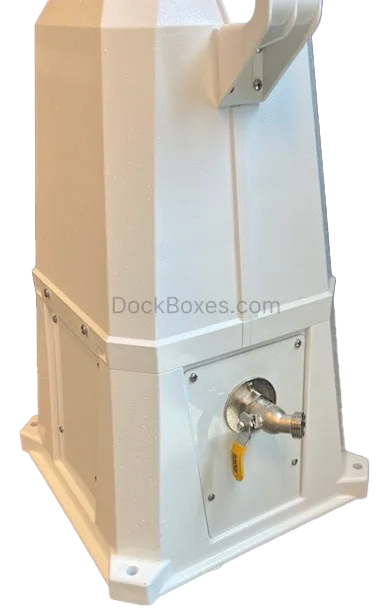

    • 1/4 Turn ball valves with 3/4” hose bibs, single or dual options available with stainless steel handles
    • Molded mounting tabs, heavy duty
    • Phone, cable TV connections, high speed Internet
    • Wireless remote monitoring, software and hardware option
  • Power Pedestal Lighthouse.
  • What are shore power pedestals?
    Power pedestals allow easy access from a central location point to provide electrical power, meter reading, water connection, internet connection, and lighting for boats and RVs.
    Which type of power pedestal should I choose for my project?
    It depends on boat size and dock slip configuration. We offer a variety of shapes and sizes of power pedestals made with either a poly-carbonate material or stainless-steel powder-coated material for the housing. Each pedestal size can accommodate a different capacity of receptacles, breakers, and options for each model to meet your commercial or residential needs.
    Do you offer electrical distribution equipment?
    Dock Boxes Unlimited offers electrical layout and design to assist you with properly calculating and locating your wire size, power pedestals, breaker panels, transformers, or substations throughout your marina or RV park facilities.
    Are your power pedestals UL Certified?
    All Dock Boxes Unlimited power pedestals are UL Listed and Certified, which meets code requirements for shore power access ensuring an industry-leading level of product quality and safety. The heavy resin with two-coated polyurethane coating creates a long-lasting UV-resistant finish durable and weather resistant to withstand the elements.
    Why choose Dock Box Unlimited?
    Our professional sales and technical staff will assist you and your team through all aspects of your Marina or RV project with the selection of appropriate power pedestals and power configurations. We have three decades of experience Dock Boxes Unlimited is a trusted resource for all your power pedestal needs.
  • Description

    Power pedestals come pre-wired and ready for installation for your convenience. When choosing the configuration of your power pedestal, the Lighthouse offers many customized options to meet your needs. The Lighthouse is one or two-sided and can provide power for two boats or RVs per pedestal. Simply choose your required power pedestal configuration required with your electrical needs for each side.

    Power Pedestal Receptacle Configurations: Our Lighthouse power pedestal allows you to customize each side of the power pedestal to have up to 240 total amps per unit. When ordering please specify your choice of combination for each side of the pedestals with any combination of 20amp, 30 amp, 50 amp, or choose 100 amps.

    It is important to note that in this Lighthouse Power Pedestal model, if you ever upgrade your boat or electrical needs, you can also upgrade your power pedestal by simply ordering a wiring kit with the desired receptacles, wiring harness, and breakers needed.

  • Key Features
    • 360° photocell controlled LED light
    • Amber lens, clear lens optional
    • White housing, available in heavy resin or powder coated stainless steel
    • Backlit faceplate, easy receptacle plug-in at night
    • Digital electronic meter option
    • Two lockable door covers, waterproof
    • Marine or RV receptacles; single, dual, or combinations available
    • Two shore power cords
    • Copper bus bar, up to 4 AWG wire / 350 MCM bus bar/loop feed capable, with ratings from 250-500 amps
    • Hinged base, easy access for installation and maintenance
    • 1/4 Turn ball valves with 3/4” hose bibs, single or dual options available with stainless steel handles
    • Molded mounting tabs, heavy duty
    • Phone, cable TV connections, high speed Internet
    • Wireless remote monitoring, software and hardware option
