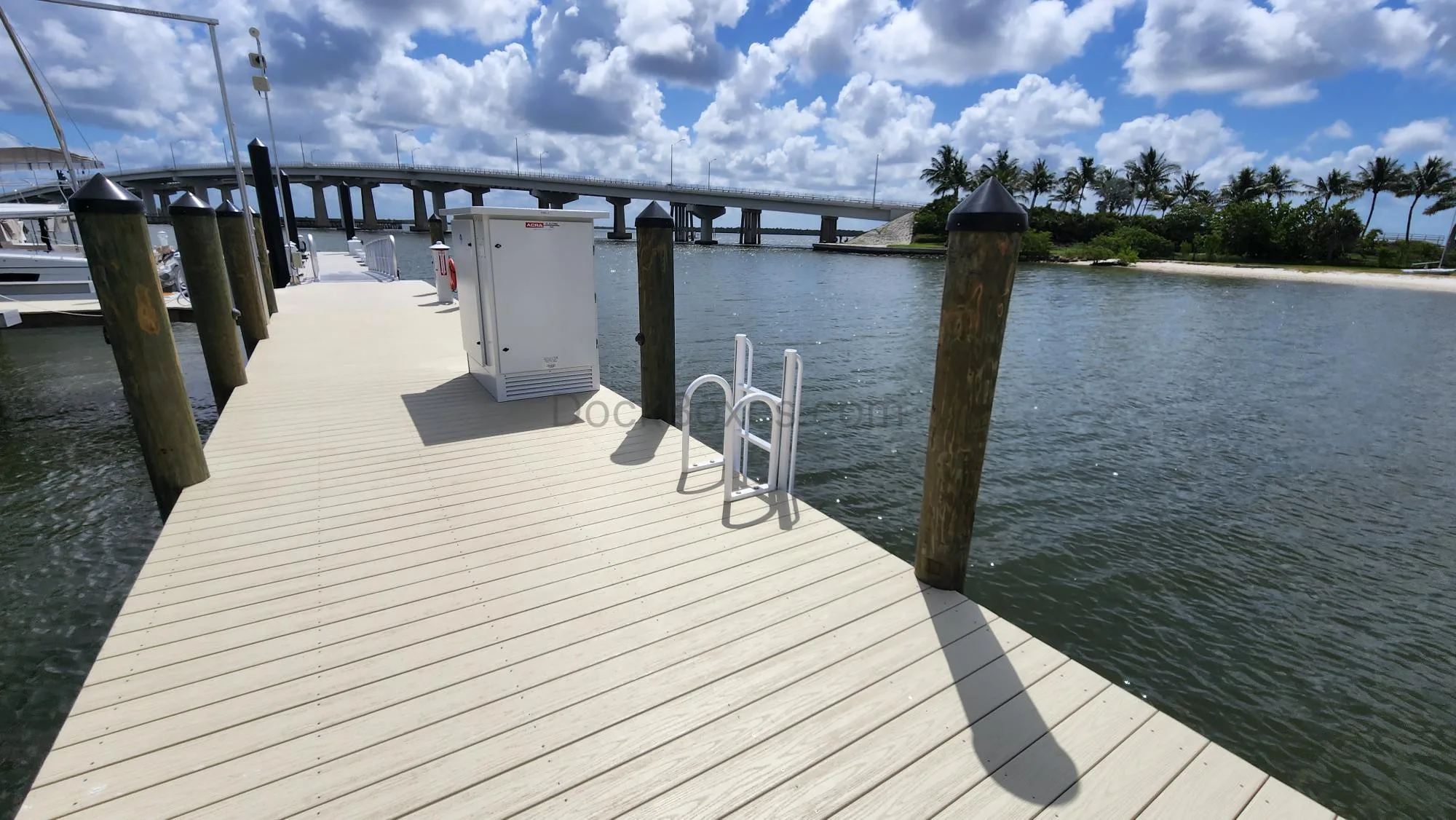

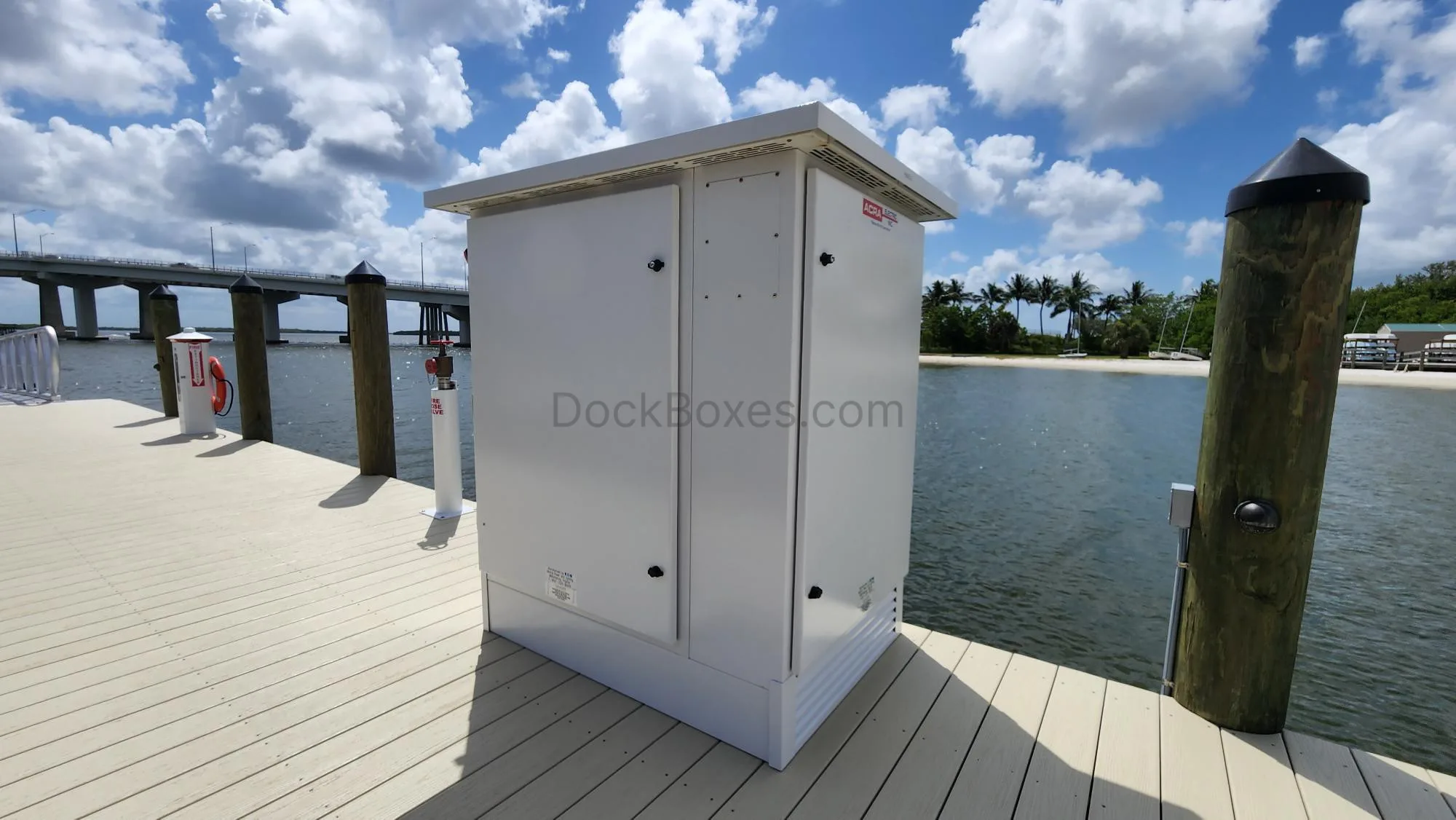

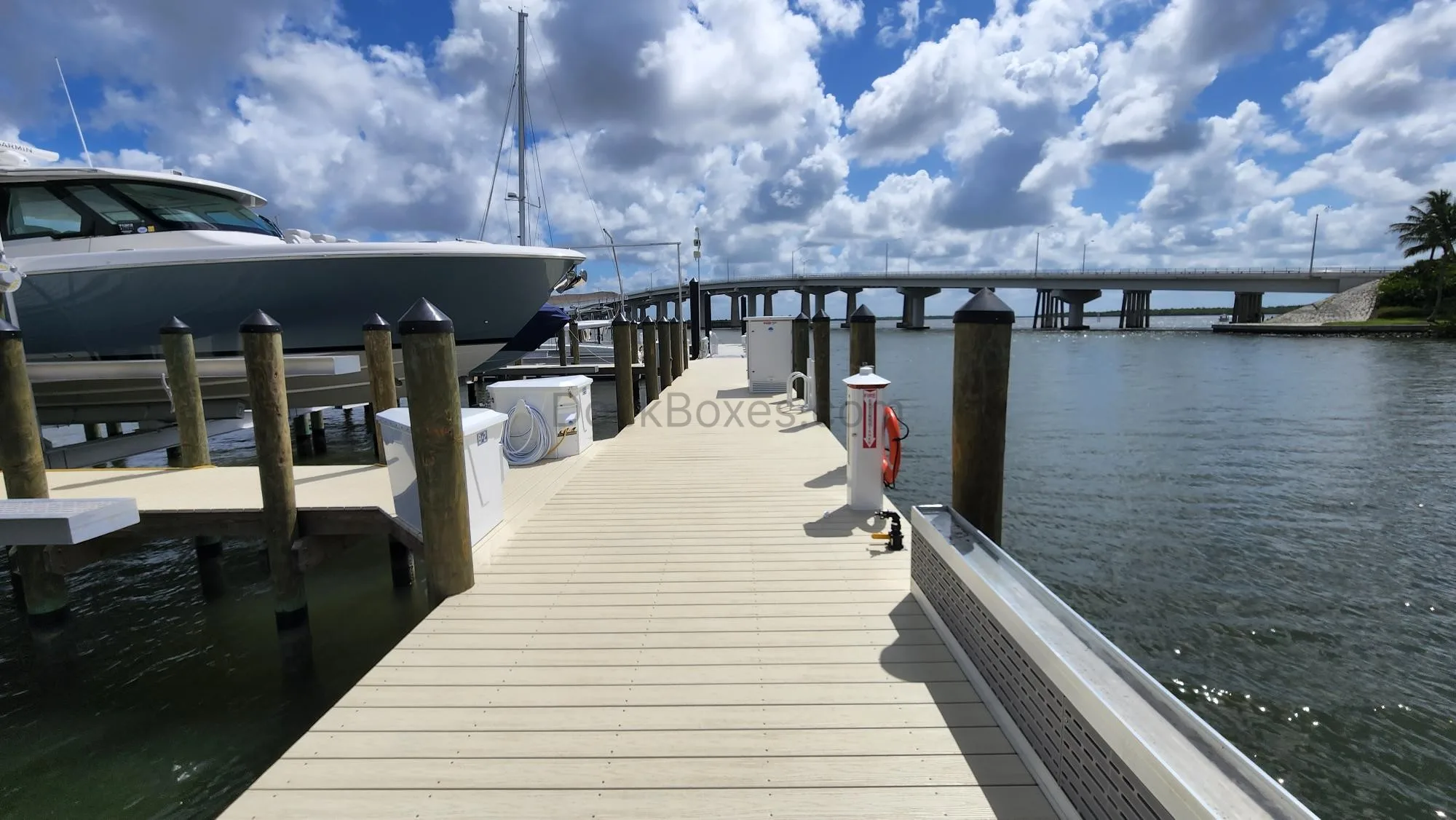

Marina Substation
Marina Substation
Width: 50.76” - 71.50"
Depth: 36"
Height: 62.80" - 68.80"
Width: 50.76” - 71.50"
Depth: 36"
Height: 62.80" - 68.80"
- This electrical distribution unit is packed with a copper-wound transformer, temperature controlled fans, and much more to distribute the incoming power to a usable voltage. Integrated into our electrical design services, this Substation will fit perfectly into your marina. Also includes ground fault monitor.
- Copper-Wound Transformers
- All internal wiring is fine-stranded, 1000 V insulated copper
- Double Wall Construction
- Multiple voltages/phases in single unit for added versatility
- Highly durable 316L stainless steel enclosure with a weathering resistant coating
- Optional ground fault monitoring
- Temperature-Controlled cooling fans
- Available in both single or three-phase
- Lockable transformer and panel doors
- Single, dual, and triple bay options
- The substation ventilation is designed to optimize air circulation over and around the transformers and through the panel compartment so that the substation operates at lower temperatures.
- Substations come equipped with temperature controlled cooling fans for exhausting hot air from the cabinet and solar shield.
- In addition, substations are available with a double-walled cabinet and solar shield which allow for cooling of both the exterior surface of the cabinet and the internal components.
- Powder Coated Cabinets Made of Stainless Steel Hardware with Locking Doors
- Transformer and Secondary Distribution Panel in a Single Enclosure Have a One Year Limited Warranty
- Overload Capacity Meets ANSI L57.96 – 01.250
- Temperature Controlled Fans for Cooling
- Marina Substation Specifications
DBU Substation Product Aid - Do I need GFPE breakers and what are my state NEC code requirements?
Click Here for NEC Code Section: 555-35, NEC Code by State: State NEC Code Requirement
What are shore power pedestals?
Power pedestals allow easy access from a central location point to provide electrical power, meter reading, water connection, internet connection, and lighting for boats and RVs.
Which type of power pedestal should I choose for my project?
It depends on boat size and dock slip configuration. We offer a variety of shapes and sizes of power pedestals made with either a poly-carbonate material or stainless-steel powder-coated material for the housing. Each pedestal size can accommodate a different capacity of receptacles, breakers, and options for each model to meet your commercial or residential needs.
Do you offer electrical distribution equipment?
Dock Boxes Unlimited offers electrical layout and design to assist you with properly calculating and locating your wire size, power pedestals, breaker panels, transformers, or substations throughout your marina or RV park facilities.
Are your power pedestals UL Certified?
All Dock Boxes Unlimited power pedestals are UL Listed and Certified, which meets code requirements for shore power access ensuring an industry-leading level of product quality and safety. The heavy resin with two-coated polyurethane coating creates a long-lasting UV-resistant finish durable and weather resistant to withstand the elements.
Why choose Dock Box Unlimited?
Our professional sales and technical staff will assist you and your team through all aspects of your Marina or RV project with the selection of appropriate power pedestals and power configurations. We have three decades of experience Dock Boxes Unlimited is a trusted resource for all your power pedestal needs.
Description
This electrical distribution unit is packed with a copper-wound transformer, temperature controlled fans, and much more to distribute the incoming power to a usable voltage. Integrated into our electrical design services, this Substation will fit perfectly into your marina. Also includes ground fault monitor.- Copper-Wound Transformers
- All internal wiring is fine-stranded, 1000 V insulated copper
- Double Wall Construction
- Multiple voltages/phases in single unit for added versatility
- Highly durable 316L stainless steel enclosure with a weathering resistant coating
- Optional ground fault monitoring
- Temperature-Controlled cooling fans
- Available in both single or three-phase
- Lockable transformer and panel doors
- Single, dual, and triple bay options
Key Features
- The substation ventilation is designed to optimize air circulation over and around the transformers and through the panel compartment so that the substation operates at lower temperatures.
- Substations come equipped with temperature controlled cooling fans for exhausting hot air from the cabinet and solar shield.
- In addition, substations are available with a double-walled cabinet and solar shield which allow for cooling of both the exterior surface of the cabinet and the internal components.
- Powder Coated Cabinets Made of Stainless Steel Hardware with Locking Doors
- Transformer and Secondary Distribution Panel in a Single Enclosure Have a One Year Limited Warranty
- Overload Capacity Meets ANSI L57.96 – 01.250
- Temperature Controlled Fans for Cooling
Technical Drawings
Build Your Pedestal
Marina Substations are custom assembled. Please provide us with your own specifications by calling 1-800-559-4269 or submitting an estimate request below.
Volume Pricing Available
Dock Boxes Unlimited offers volume pricing options for residential and commercial buyers. Request an estimate for this product by filling out the form below.
Volume pricing available for Commercial buyers
REQUEST AN ESTIMATE (Commercial and Residential Customers)
